      Hoek Interferometer Simulator:
    Arm Lengths (m)   Refractive Index:
    Arm 1 and 3 Arm 3
    Arm 2 and 4 Arm 1, 2, and 4
      Method:
    Laser Wavelength (nm) Galilean = 0, Fresnel = 1

    Ether Wind (m/s) Time Difference (fs)
    transverse wind (m/s) after turning

    Lorentz Contraction: Fringe Shift (360 deg.)
    0= YES, 1 = No after turning

    Source W-E direction: Experimental Results - Propagation times for each arm (s)   1 fs = 1E -15 s
    Arm 1 Arm 2 Arm 3 (R.I. > 1) Arm 4 Total time round trip: t Diff. (fs)


    Arm 1 Arm 2 Arm 4 (R.I.>1)) Arm 4
    Source N-S direction:
    Arm 1 Arm 2 Arm 3 (R.I. > 1) Arm 4   t Diff. (fs)


    Arm 1 Arm 2 Arm 4 (R.I.>1)) Arm 4

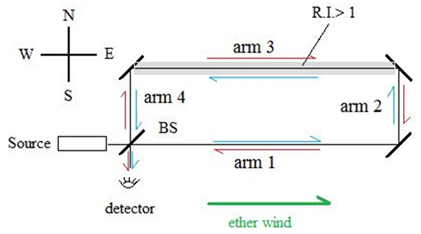

      To simulate the original Hoek experiment use the following conditions:

    Arm 1 and 3 = 1 m,   Arm 2 and 4 = 1 m      Wavelength = 5.5 E-007     Ether Wind Velocity = 30,000 m/s (Earth's orbital velocity),  Method = Galilean = 0

    Lorentz Contraction (= 1). Refractive Index = 1.333  for arm 3, 1.000 for Arms 1,2 and 4. The expected result is a large number of fringe shifts after turning the

    device (calculate) when Galilean velocity addition is used to determine the speed of light in each arm, where c' = c/n +/- v. If the Fresnel Drag Coefficient is used (Method =1),

    then there is no fringe shift. The actual null result is consistent with using the equation of the Lorentz theory of corresponding states where c' = c/n +/- v/n2 for each

    arm. Test other values to see how they might affect the outcome. This result is discussed at: http://www.conspiracyoflight.com/Premise_Ether/Premise_Ether.html
